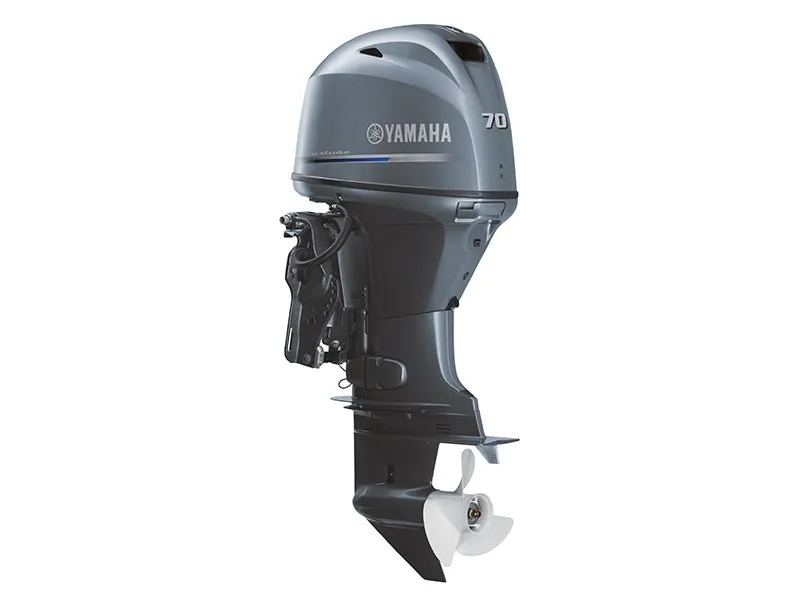

Yamaha F70

The launch of Yamaha’s F70 changed customers’ expectations of outboards in this category forever.

Beating in the heart of the F70 is a unique four-cylinder, 16-valve design activated by a single overhead camshaft. The 4-valves per cylinder valvetrain has dramatically increased this outboard’s volumetric efficiency, effectively transferring more air and exhaust at a more efficient rate. This makes the F70 more fuel-efficient, promotes a stronger torque band and makes the F70 lighter than all four-stroke and direct injected two-stroke competitors.

The F70’s awesome performance offers huge versatility and makes it the perfect power option for a huge range of mid-sized fishing boats and pleasure craft.

TECHNICAL SPECIFICATION

• Engine Type: 4-Stroke, 16 Valve SOHC In-line 4 Cylinder
• Bore x Stroke (mm): 65 x 75
• Displacement (cc): 996.0
• Recommended Maximum RPM: 5300 - 6300
• Fuel Management: EFI
• Ignition: TCI
• Lubrication System: Wet sump
• Alternator Output: 12V-16A with Rectifier Regulator
• Gear Ratio: 2.33:1
• Starter System: Electric
• Operation Method: Mechanical Control (Optional Tiller Handle Available)
• Trim and Tilt Method: Power Trim & Tilt
• Digital Gauges: Optional
• Command Link Gauges: Optional
• Transom Height (mm [inch])L: 534 [21.0] | X: 648 [25.5]
• Dry Weight (kg)L: 119 | X: 121
